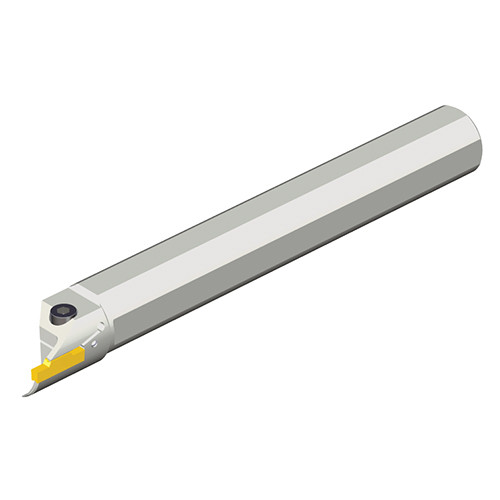

TTFIL 25-3T12 42-60
Boring bars with coolant holes for internal face grooving & face turning
Price: Log in For Price

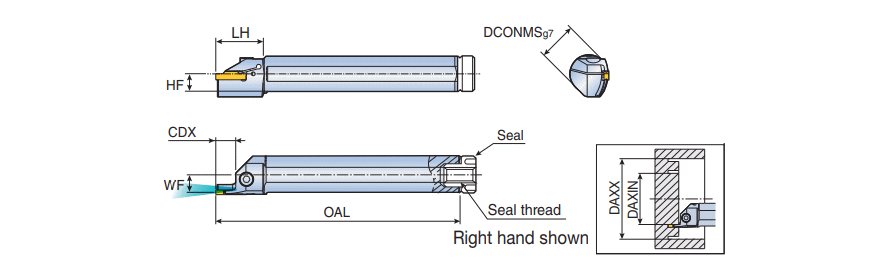

| Cutting Depth Maximum (CDX) | 12 mm | Axial Groove Outside Diameter Minimum (DAXN) | 60 mm |
| Shank Width (B) | 11.5 mm | Axial Groove Outside Diameter Maximum (DAXX) | 42 mm |
| Functional Width (WF) | 11.4 mm | Body Material | Steel |
| Head Length (LH) | 31 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Unit | M |
| Application | | Int. Face Grooving | Int. Face Grooving & Turning | Tools for Swiss Machines | |
Product Features
| Family Description | Boring bars with coolant holes for internal face grooving & face turning | FamilyName | TTFIR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.7000
Name
Groove/Turn Indexable Holders
FamilyName
TTFIR/L
BrandName
Taegutec
