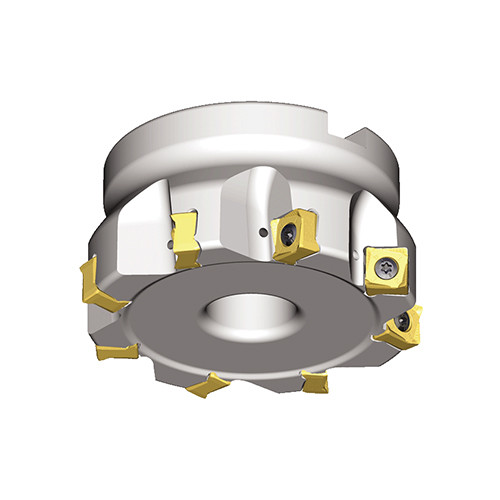

8D-TF90-440-16R-12
90° Face mills with 8 cutting edges of double-sided Square inserts SQ 12 for general milling
Price: Log in For Price

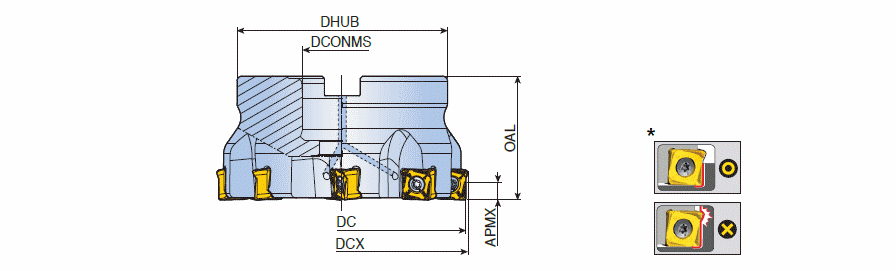

| Cutting Diameter (DC/DCX) | 41.3 mm | Hub Diameter (DHUB) | 38 mm |
| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | SQKU 120608 PNR-MP |
| Cutting Diameter Maximum (DCX) | 41.3 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Application | | Facing | Shouldering | |
| Depth of Cut Maximum (APMX) | 8.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Unit | M |
| Overall Length (OAL) | 8.5 mm |
Product Features
| Family Description | 90° Face mills with 8 cutting edges of double-sided Square inserts SQ 12 for general milling | FamilyName | 8D-TF90-R-12 |
| Remarks | DC: Cutting diameter, DCX: Cutting diameter maximum Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) APMX : When applying SQHU insert, APMX is 8.0mm. | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.3850
Name
Indexable Face Mills
FamilyName
8D-TF90-R-12
BrandName
Taegutec
