2P-TE90-212-M06-05

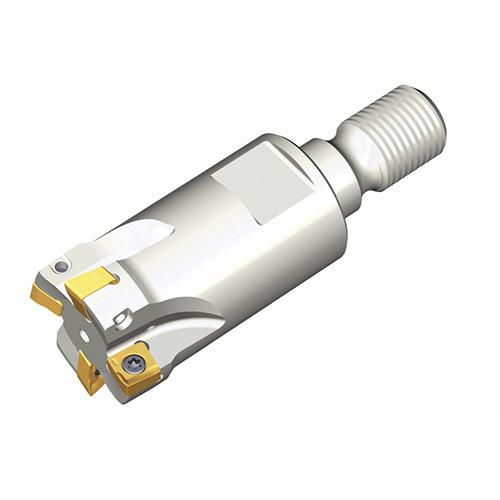

90° Modular end mills with T-FLEXTEC adaptation & high positive helical cutting edges of 2PKT inserts
Price: Log in For Price

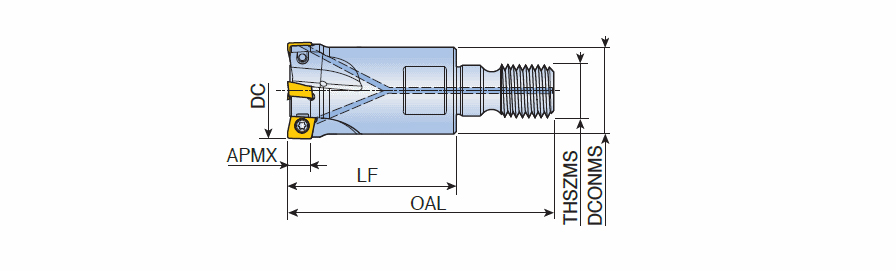

| Cutting Diameter (DC/DCX) | 12 mm | Master Insert Identification (MIID) | 2PKT 050304R-M |
| Cutting Diameter (DC) | 12 mm | Head Length (LH) | 23 mm |
| Cutting Item Count (CICT) | 2 | Connection Thread Nominal Size Machine Side (THSZMS) | M06 |
| Depth of Cut Maximum (APMX) | 4.7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 37.5 mm | Body Material | Steel |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | Step down machining | | Unit | M |
Product Features
| Family Description | 90° Modular end mills with T-FLEXTEC adaptation & high positive helical cutting edges of 2PKT inserts | FamilyName | 2P-TE90-M-05 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0700
Name
Indexable End Mills
FamilyName
2P-TE90-M-05
BrandName
Taegutec
