| Shank Size (SS) | 30 mm | Measurement Type | Metric |
| Body Diameter (BD) | 13 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Connection Retention Knob Thread Size (CRKS) | M12 | Cutter Outer Diameter (D1) | 12 mm |
| Overall Length (OAL) | 43 mm | Reduced Diameter (D2) | 8 mm |
| Body Length_2 (LB_2) | 23.4 mm | Body Material | Steel |
| Application | | Collets & Accessories | | Unit | M |
Product Features
| Family Description | BT Pull stud with JIS 63398 retention knob | FamilyName | PS BT-JIS (PULL STUD) |

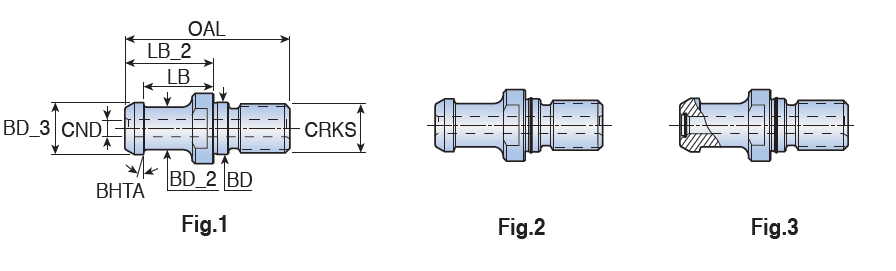

| Remarks | Fig. 1: Coolant holes only in items with a "B" suffix Fig. 2: With external O ring and coolant hole Fig. 3: With external and internal O rings and coolant hole | BrandName | Taegutec |
| COO | ITALY |
Shipping Info
Weight per item
0.0325
Name

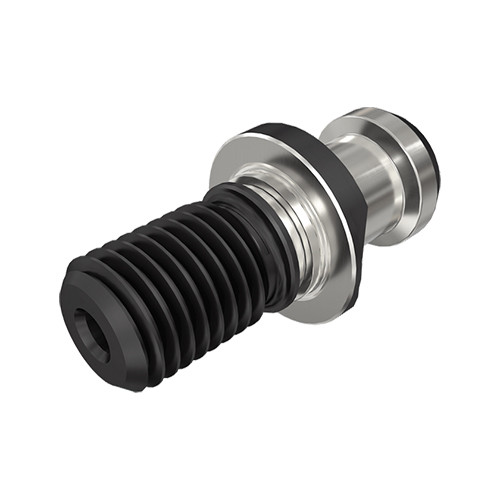

Pull Studs (Retention Knobs)
FamilyName
PS BT-JIS (PULL STUD)
BrandName
Taegutec
