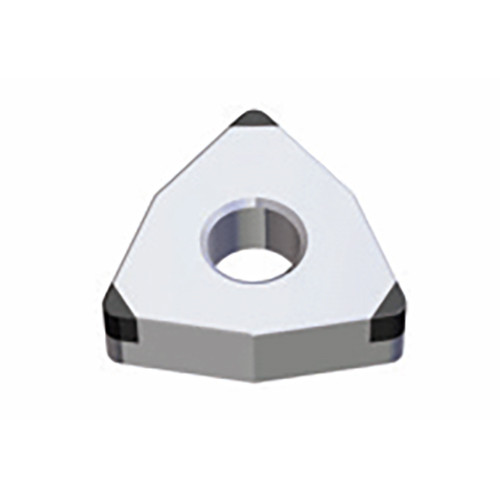

WNGA 080408 WZ-LS6 TB670
Negative 80° Trigon inserts with CBN tips for finishing of hardened steels
Price: Log in For Price
| Applicable Material | | Hard Materials | | Grade | TB670 |
| Application | | Ext 95° App 80°Trigon | Inserts | Int 95° App 80° Trigon | | Min D.O.C. | 0.05 mm |

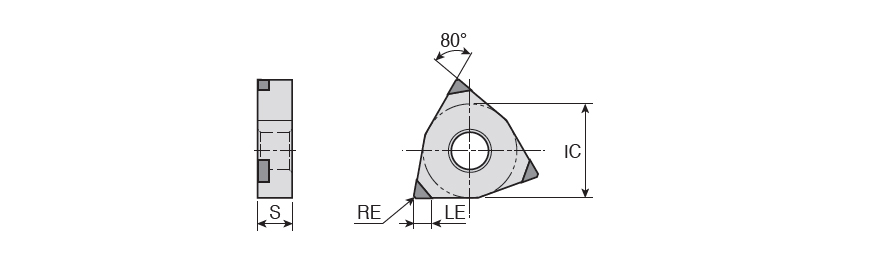

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Cutting Edge Length (L) | 8.7 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Negative 80° Trigon inserts with CBN tips for finishing of hardened steels | FamilyName | WNGA-CBN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0171
Name
Turning Indexable Inserts
FamilyName
WNGA-CBN
BrandName
Taegutec
