| Applicable Material | | Steel | | Grade | P30 |
| Application | | Ext 90° App Face 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 1 mm |

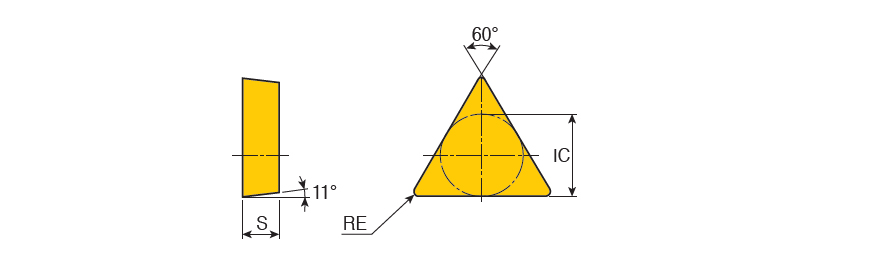

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Cutting Edge Length (L) | 16.5 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features

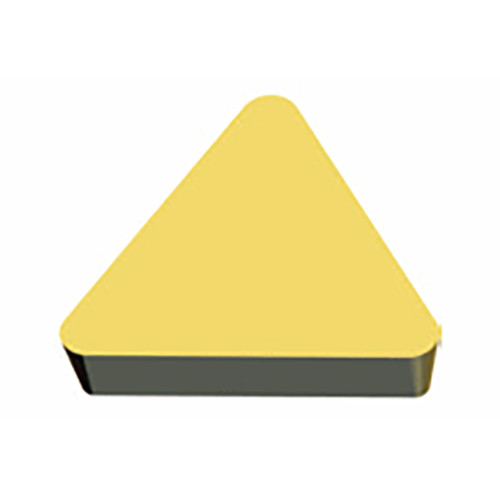

| Family Description | Positive triangular inserts for medium machining | FamilyName | TPUN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0052
Name
Turning Indexable Inserts
FamilyName
TPUN
BrandName
Taegutec
