| Applicable Material | | Steel | Stainless Steel | | Grade | TT5100 |
| Application | | Ext 45° App 90° Square | Ext 45°App Face&Turn 90°Square | Ext 75° App 90° Square | Ext 75° App Face 90° Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 3 mm |

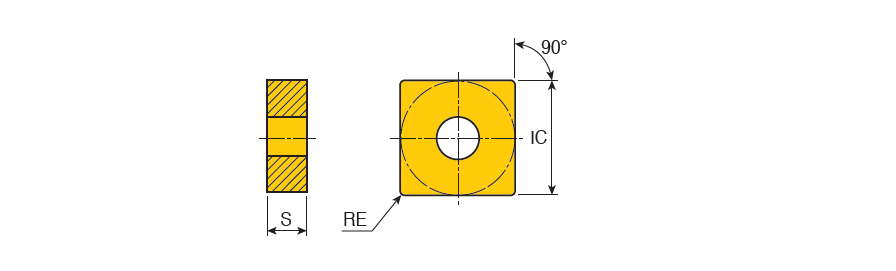

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 8 mm |
| Cutting Edge Length (L) | 19.05 mm | Min. Turning Feed (ft(min)) | 0.25 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features

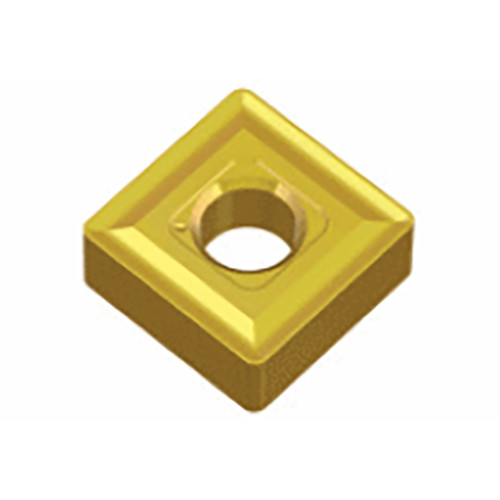

| Family Description | Negative Square inserts for medium rough machining of steels & cast irons | FamilyName | SNMG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0315
Name
Turning Indexable Inserts
FamilyName
SNMG
BrandName
Taegutec
