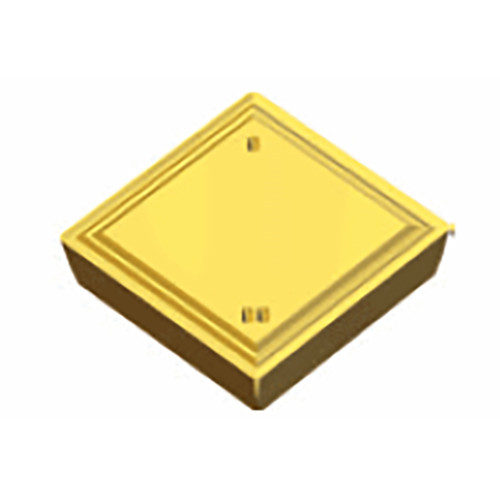

SPMR 120304 TT5100
Positive Square inserts for medium and medium-rough for steel, stainless steel & cast iron with positive rake angle
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | TT5100 |
| Application | | Ext 45° App 90° Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Cutting Edge Length (L) | 12.7 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Positive Square inserts for medium and medium-rough for steel, stainless steel & cast iron with positive rake angle | FamilyName | SPMR |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0083
Name
Turning Indexable Inserts
FamilyName
SPMR
BrandName
Taegutec
