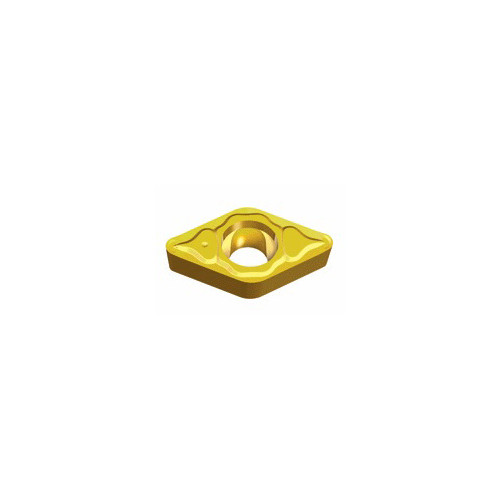

DCMT 070208 PC TT9225

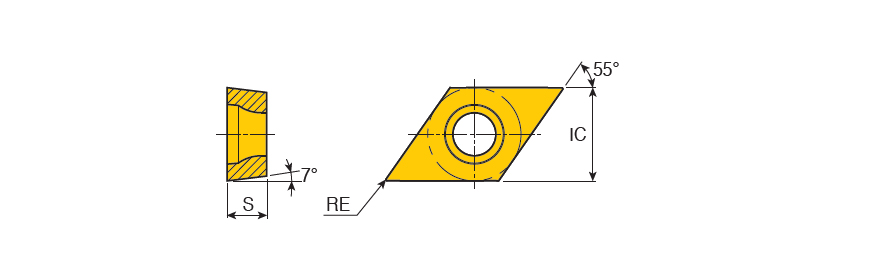

Positive 55° Rhombic inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force
Price: Log in For Price
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9225 |
| Application | | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Ext 93° App Shift 55° Diamond | Ext 93° App Sleeve 55° Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.4 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 7.7 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al203+TiCN | Unit | M |
Product Features
| Family Description | Positive 55° Rhombic inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force | FamilyName | DCMT-PC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0025
Name
Turning Indexable Inserts
FamilyName
DCMT-PC
BrandName
Taegutec
