TNMG 220408 TT9080

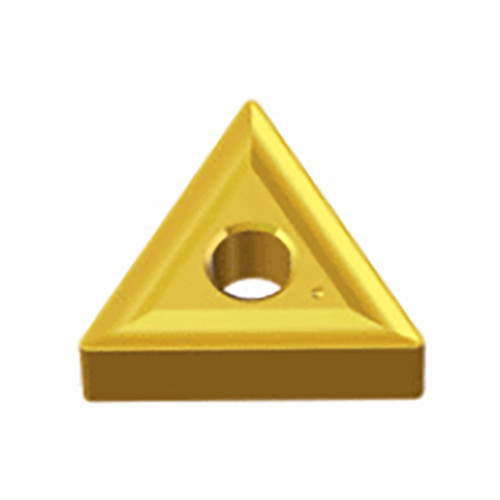

Negative 60° Triangular insert for medium rough machining of steels & cast irons
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Ext 60° App 60° Triangle | Ext 60° Neutral 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 2 mm |

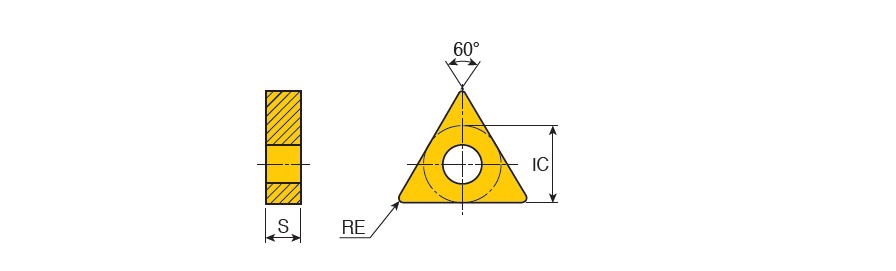

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Cutting Edge Length (L) | 22 mm | Min. Turning Feed (ft(min)) | 0.17 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.55 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | Negative 60° Triangular insert for medium rough machining of steels & cast irons | FamilyName | TNMG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0151
Name
Turning Indexable Inserts
FamilyName
TNMG
BrandName
Taegutec
