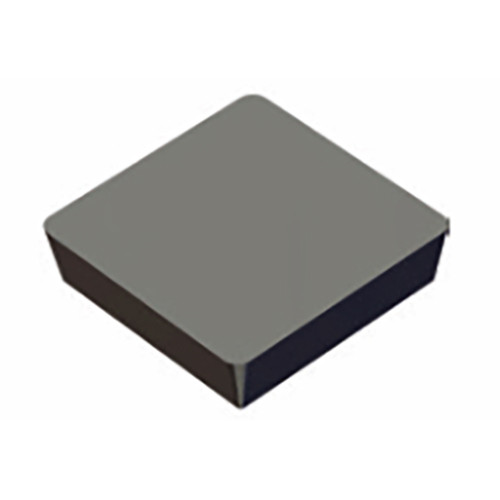

SPGN 120308 AB30
Positive Square Ceramic ground inserts without hole of 11° clearance angle for cast iron machining
Price: Log in For Price

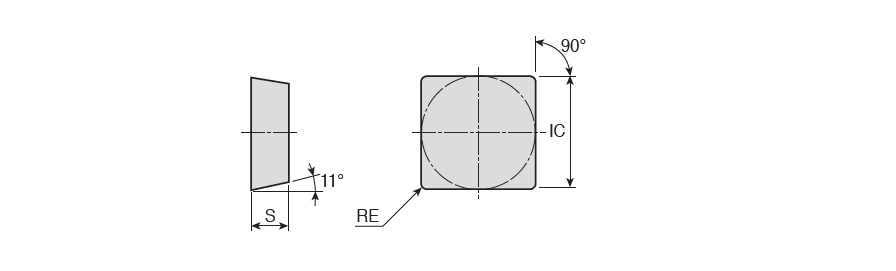

| Applicable Material | | Cast Iron | Hard Materials | | Grade | AB30 |
| Application | | Ext 45° App 90° Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 12.7 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
Product Features
| Family Description | Positive Square Ceramic ground inserts without hole of 11° clearance angle for cast iron machining | FamilyName | SPGN-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0033
Name
Turning Indexable Inserts
FamilyName
SPGN-CERAMIC
BrandName
Taegutec
