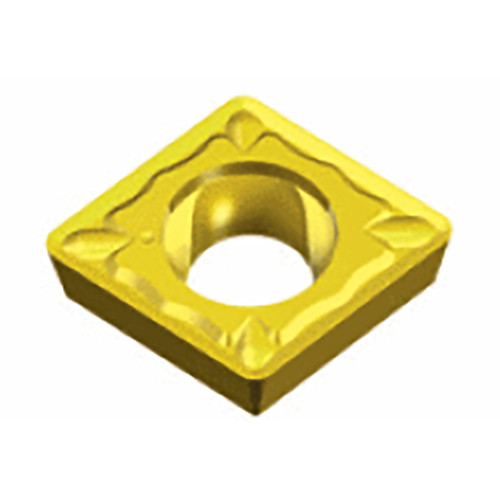

CPMT 080204 FG CT3000

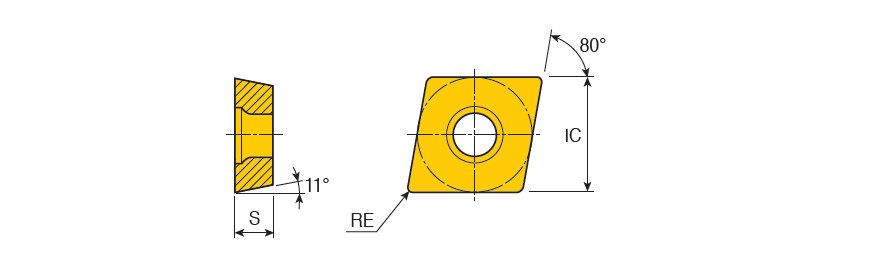

Positive 80 Rhombic inserts for finish to medium light applications of steels & stainless steels with 11° clearance angle & excellent chip control
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Fixing Hole Diameter (D1) | 3.4 mm |
| Application | | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 0.4 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 7.6 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 7.94 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | Cermet | Unit | M |
| Grade | CT3000 |
Product Features
| Family Description | Positive 80 Rhombic inserts for finish to medium light applications of steels & stainless steels with 11° clearance angle & excellent chip control | FamilyName | CPMT-FG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0019
Name
Turning Indexable Inserts
FamilyName
CPMT-FG
BrandName
Taegutec
