| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Ext 93° App Shift 55° Diamond | Ext 93° App Sleeve 55° Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.6 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 11.6 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | Cermet | Unit | M |
| Grade | CT3000 |
Product Features

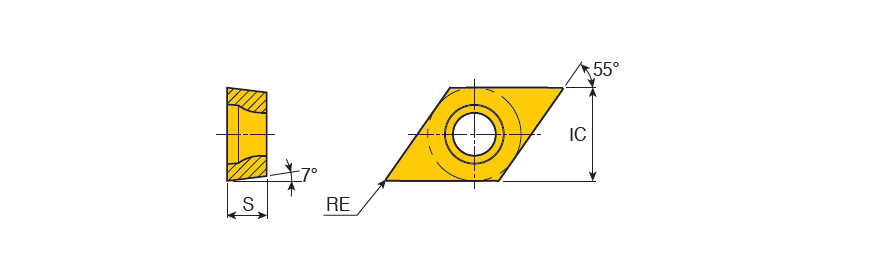

| Family Description | Positive 55° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control | FamilyName | DCMT-FG |
| COO | S.KOREA | BrandName | TaeguTec |
Shipping Info
Weight per item
0.0036
Name
Turning Indexable Inserts
FamilyName
DCMT-FG
BrandName
TaeguTec
