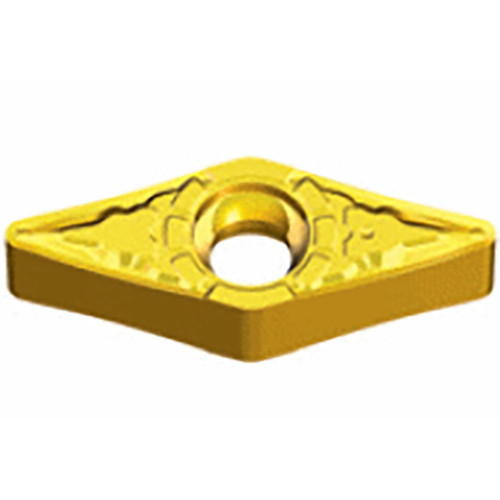

VNMG 130408 FG CT3000
Negative 35° Rhombic inserts for finishing & semi-finishing of steels, stainless steels and cast irons
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | CT3000 |
| Application | | Ext 117.5° App 35° Diamond | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Inserts | Int 100° App 70° Diamond | Int 117.5 App 35° Diamond | Int 95° App 35° Diamond | | Min D.O.C. | 0.5 mm |

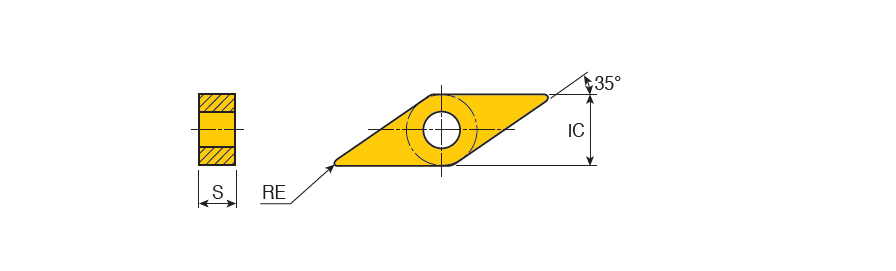

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 13 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.23 mm/rev |
| Inscribed Circle Diameter (IC) | 7.94 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | Cermet | Unit | M |
Product Features
| Family Description | Negative 35° Rhombic inserts for finishing & semi-finishing of steels, stainless steels and cast irons | FamilyName | VNMG-FG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0041
Name
Turning Indexable Inserts
FamilyName
VNMG-FG
BrandName
Taegutec
