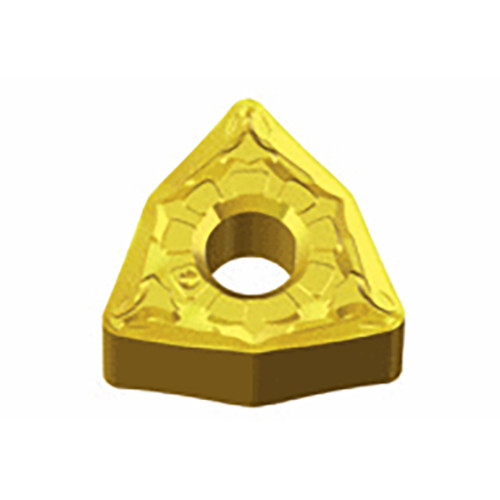

WNMG 060404 FG TT8125B
Negative 80° Trigon inserts for finishing & semi-finishing of steels, stainless steels and cast irons
Price: Log in For Price
| Applicable Material | | Steel | | Grade | TT8125B |
| Application | | Ext 95° App 80°Trigon | Inserts | Int 95° App 80° Trigon | | Min D.O.C. | 0.5 mm |

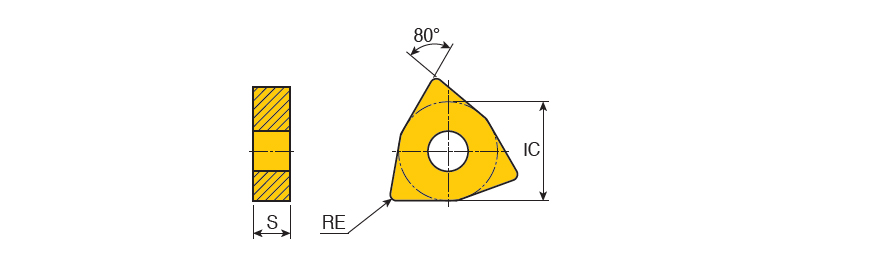

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 6.52 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Negative 80° Trigon inserts for finishing & semi-finishing of steels, stainless steels and cast irons | FamilyName | WNMG-FG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0062
Name
Turning Indexable Inserts
FamilyName
WNMG-FG
BrandName
Taegutec
