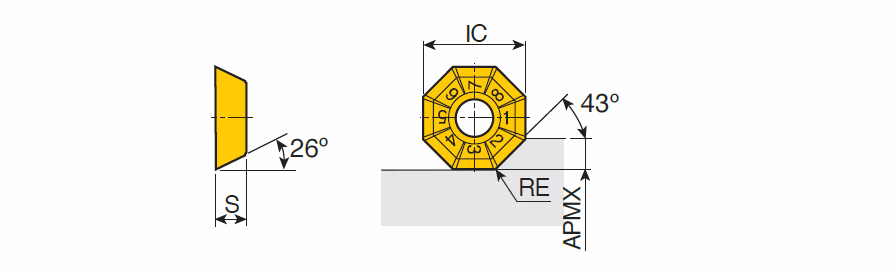

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9030 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Cutting Edge Length (L) | 3.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.6 mm | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Depth of Cut Maximum (APMX) | 3 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 3.8 mm | Unit | M |
| Coating | TiAlN |
Product Features

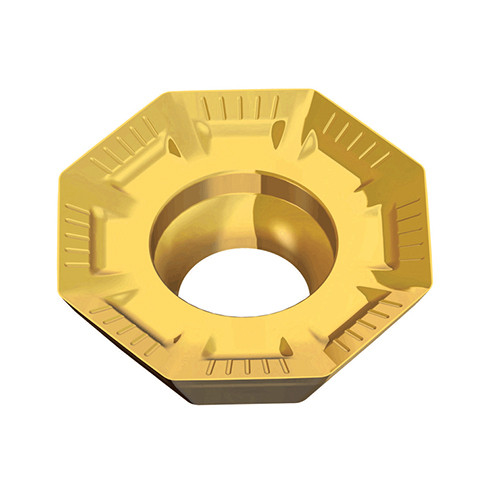

| Family Description | Octagonal super positive screw type milling inserts for stainless steel & low cutting force machining | FamilyName | OFMT 05-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0048
Name
Milling Indexable Inserts
FamilyName
OFMT 05-ML
BrandName
Taegutec
