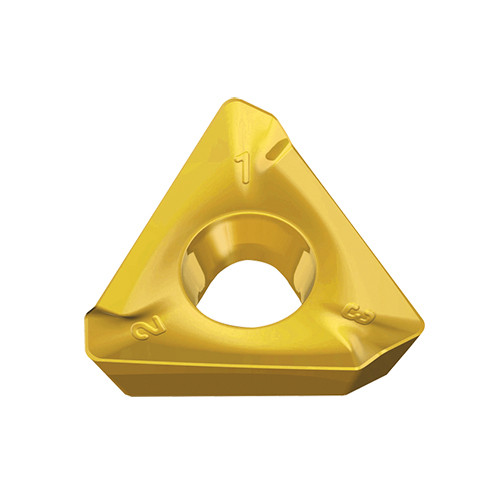

3PKT 100404R-M TT8080
High positive inserts 3PKT with three helical cutting edges for 90° shoulders & general machining
Price: Log in For Price

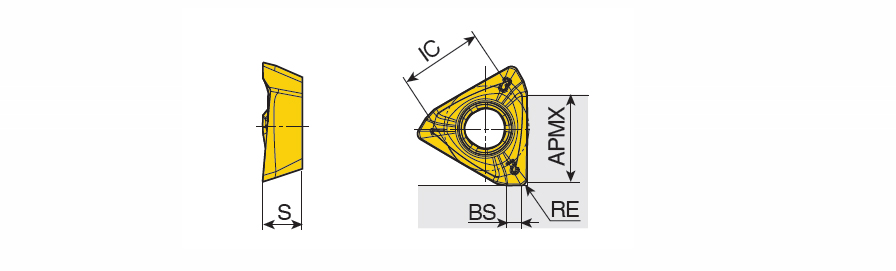

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT8080 |
| Application | | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Cutting Edge Length (L) | 7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.9 mm | Body Material | Carbide |
| Insert Thickness (S) | 4 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | High positive inserts 3PKT with three helical cutting edges for 90° shoulders & general machining | FamilyName | 3PKT 10-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0027
Name
Milling Indexable Inserts
FamilyName
3PKT 10-M
BrandName
Taegutec
