| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 1 mm/tooth |
| Application | | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.5 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Depth of Cut Maximum (APMX) | 0.5 mm | Measurement Type | Metric |
| Insert Thickness (S) | 2.52 mm | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT9080 |
Product Features
| Family Description | Unique double-sided inserts of 4 cutting edges for High Feed milling of general applications in maximum depth of cut ap 0.5 mm | FamilyName | BLMP 04-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0018

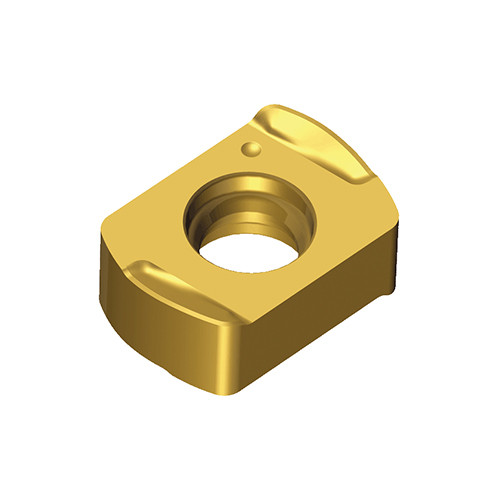

Name
Milling Indexable Inserts
FamilyName
BLMP 04-M
BrandName
Taegutec
