| Applicable Material | | Steel | Hard Materials | | Cutting Edge Material | Carbide |
| Application | | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | Step down machining | | Minimum Feed per Tooth (fz(min)) | 0.3 mm/tooth |
| Depth of Cut Maximum (APMX) | 1 mm | Number of Cutting Edges | 8 |

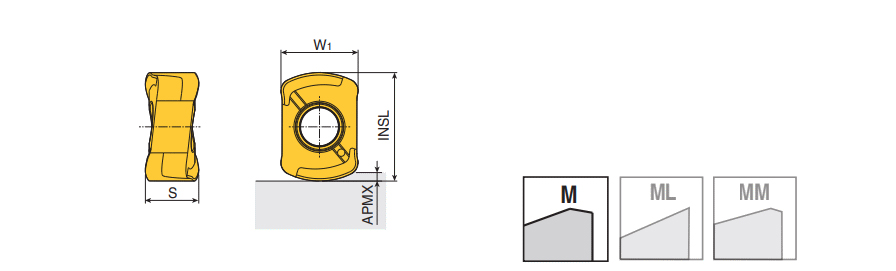

| Insert Thickness (S) | 4.43 mm | Measurement Type | Metric |
| Coating | AlTiN | Body Material | Carbide |
| Grade | TT2510 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 1.2 mm/tooth |
Product Features
| Family Description | V-shaped double-sided inserts for high feed milling | FamilyName | BLMV 06-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0033
Name
Milling Indexable Inserts
FamilyName
BLMV 06-M
BrandName
Taegutec
