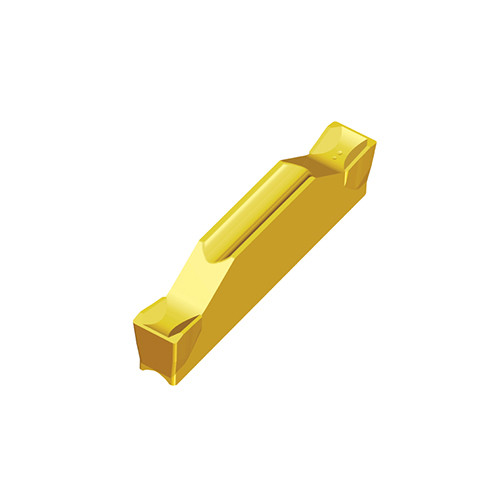

TDC 3 TT9080

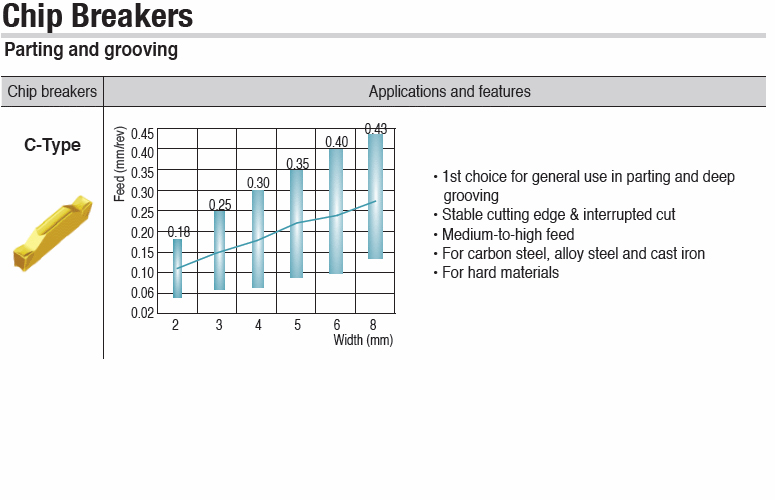

Double-ended inserts with C-Type chip breaker for Parting & Grooving of hard materials & tough applications in medium-to-high feed of steel, alloy steel & stainless steel
Price: Log in For Price

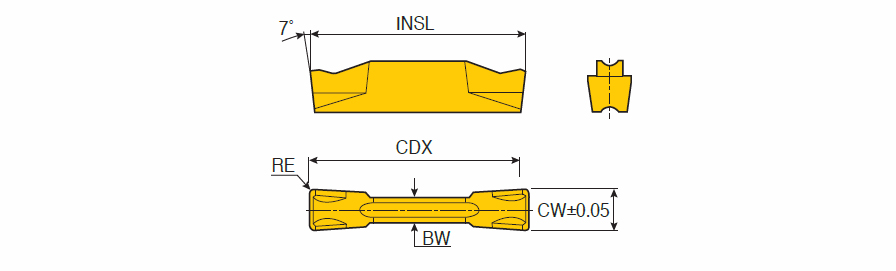

| Cutting Width (CW) | 3 mm | Application | | Ext. Grooving | Face Grooving | Inserts | Int. Grooving | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 20 mm | Height | 4.7 mm |
| Cutting Depth Maximum (CDX) | 19 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT9080 |
Product Features
| Family Description | Double-ended inserts with C-Type chip breaker for Parting & Grooving of hard materials & tough applications in medium-to-high feed of steel, alloy steel & stainless steel | FamilyName | TDC (Double-ended) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0043
Name
Parting Off Indexable Inserts
FamilyName
TDC (Double-ended)
BrandName
Taegutec
