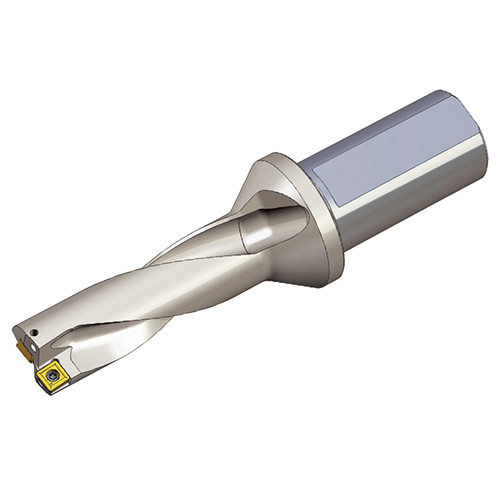

TDR 3250-25T2-07
Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD
Price: Log in For Price

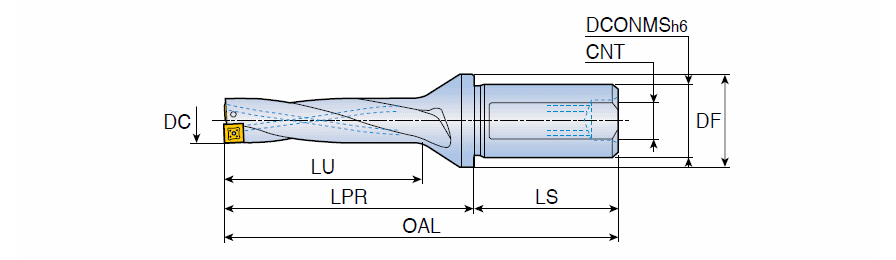

| Cutting Diameter (DC) | 25 mm | Overall Length (OAL) | 158 mm |
| Usable Length (LU) | 75 mm | Connection Thread Size (Ts) | M16X1.5 |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Length Group | 3xD |
| Shank Length (LS) | 56 mm | Body Material | Steel |
| Functional Length (LF) | 102 mm | Unit | M |
Product Features
| Family Description | Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD | COO | S.KOREA |
Shipping Info
Weight per item
0.5100
