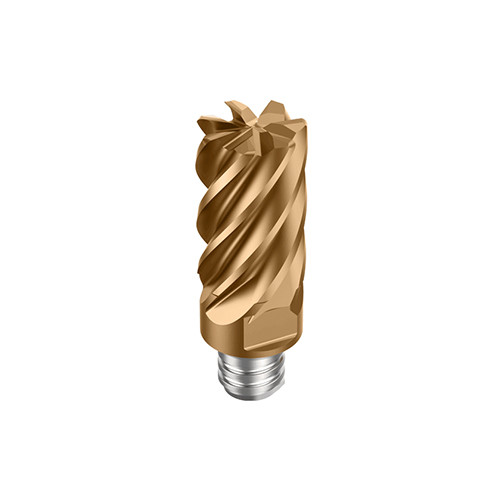

MXED100L15R05I07S06 TT5523
Long cutting edge 1.5D & 7,9 flutes & varianle helix, pitch
Price: Log in For Price

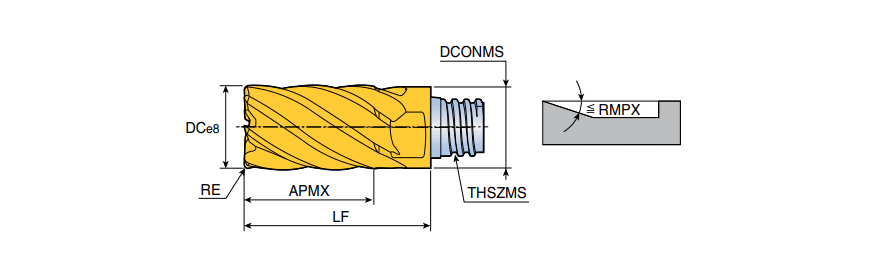

| Application | | Rampdown | Shouldering | Solid Carbide End Mills | | Flute Helix Angle (FHA) | 36 Degrees |
| Cutting Diameter (DC) | 10 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 7 | Measurement Type | Metric |
| Corner Radius (RE) | 0.5 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S06 | Protruding Length (LPR) | 22 mm |
| Depth of Cut Maximum (APMX) | 15 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm | Unit | M |
| Functional Length (LF) | 22 mm |
Product Features
| Family Description | Long cutting edge 1.5D & 7,9 flutes & varianle helix, pitch | FamilyName | MXED-I07/I09-1.5D |

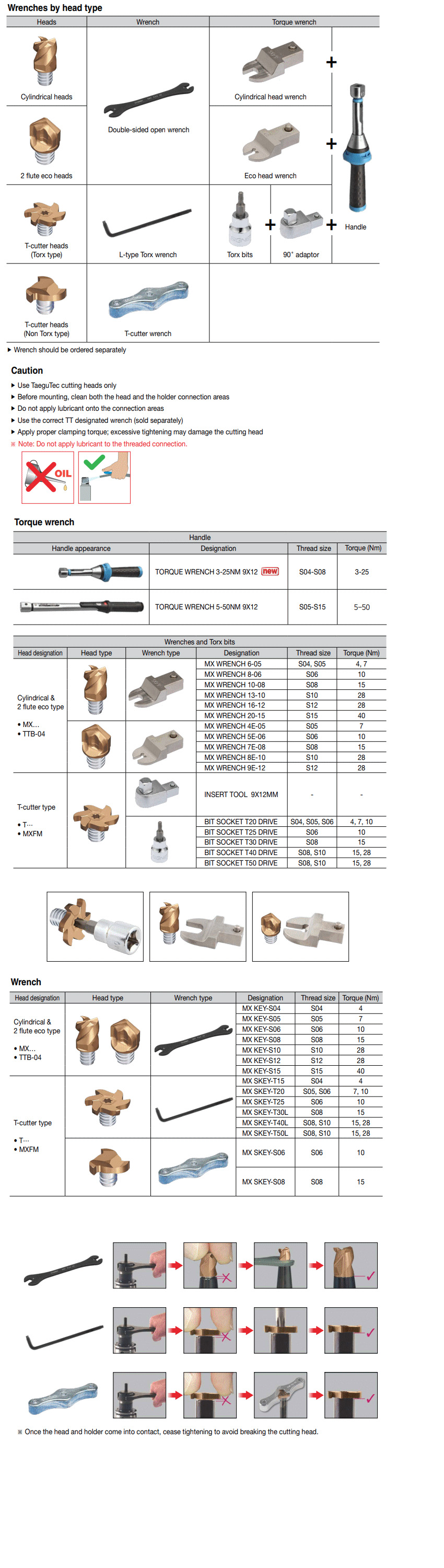

| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0525
Name
Solid End Mill Heads
FamilyName
MXED-I07/I09-1.5D
BrandName
Taegutec
