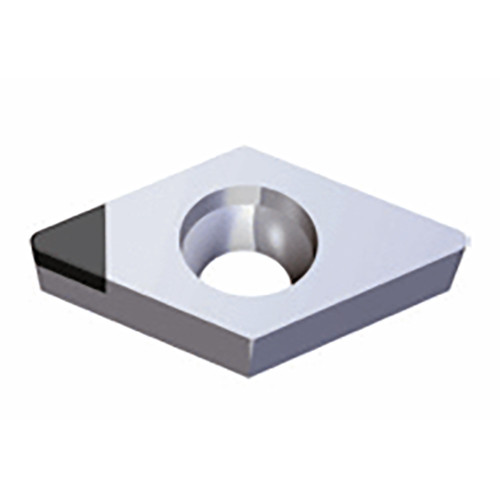

DCGW 11T304 LS2-SL TB670
Positive 55° Rhombic inserts with CBN tips for finishing of hardened steels & cast irons
Price: Log in For Price
| Applicable Material | | Hard Materials | | Grade | TB670 |
| Application | | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Ext 93° App Shift 55° Diamond | Ext 93° App Sleeve 55° Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.05 mm |

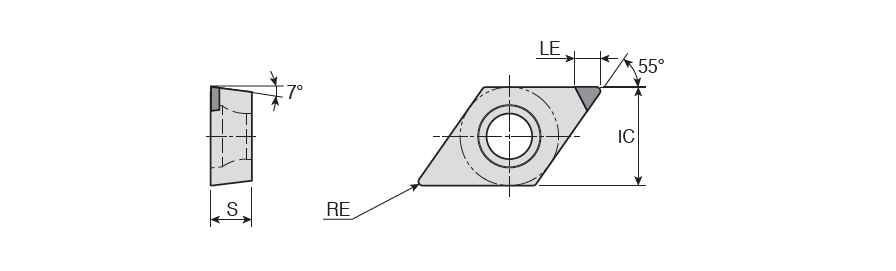

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Cutting Edge Length (L) | 11.6 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Positive 55° Rhombic inserts with CBN tips for finishing of hardened steels & cast irons | FamilyName | DCGW-CBN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
DCGW-CBN
BrandName
Taegutec
